A brief preview of the newest designs for NYC’s subway cars

by Benjamin Kabak

Governor Andrew Cuomo announced some design changes and upgrades for the subway this morning. I’ll have the details in a full post tonight, but to wet your whistle, an early glimpse at the renderings. Enjoy.

A new color scheme, brighter LED lights and a return of the properly-hued route designation bullets are a part of Antenna's design for the new subway cars.

A new color scheme, brighter LED lights and a return of the properly-hued route designation bullets are a part of Antenna’s design for the new subway cars.

Flip seats will allow for my car capacity at peak hours.

Flip seats will allow for my car capacity at peak hours.

Open gangways and wider doors are part of the new design plan for the R-211s.

Open gangways and wider doors are part of the new design plan for the R-211s.

You may also like

55 comments

Andy July 18, 2016 - 4:04 pm

Seems like a lot less area for seating. There is a large space between the edge of the door and where the seats start.

Reply
JD July 18, 2016 - 4:42 pm

Well, since people always stand in the doors and don’t move out of the way, moving the railings a foot on each side to give them a pocket makes sense. This way they can stand in the doorway without actually being in the way (mostly).

Reply
Spendmore Wastemor July 18, 2016 - 5:13 pm

Nope, just make the floor in that area 2.5 seconds after the doors open.
“Please fall clear of the closing doors”

Reply
Rich July 18, 2016 - 6:46 pm

Agreed. Makes sense to me.

Reply
Bolwerk July 18, 2016 - 4:05 pm

Definitely like seeing the route designations back. What a silly thing to get rid of, and it so retarded the character of the NYC subway.

Now if only they could make the indoor lighting less hospital-like.

Reply
Rich July 18, 2016 - 6:48 pm

The digital route signs are a great idea. Very useful.

As for the bright lighting, I imagine the priorities there are safety and perceived safety, which are very important.

Reply
Bolwerk July 18, 2016 - 8:06 pm

The brightness is fine. That horrible white fluorescence is an ocular assault though. Whoever thought that was a good idea should be impaled, hung still wriggling in a public place, and then drawn and quartered as a message to everyone who thinks making transit users uncomfortable is okay.

Reply
smotri July 19, 2016 - 10:07 am

When I need to take the subway, I wear sunglasses even on cloudy/rainy days precisely because of the glare.

Reply
Bolwerk July 19, 2016 - 12:44 pm

I do too. I have a friend who makes fun of me for it.

I don’t really think of the fluorescence as anymore than unpleasant, but it seems to actively hurt some people. But, safety, amirite?

Stephen July 19, 2016 - 11:14 pm

We might want to hold off on the drawing and quartering until we first tar and feather them. THEN draw and quarter them.
Personally, I’d like to also add to the list of such persons the folks that came up with the ridiculous bus announcements about touching the tape and doors opening and closing and STEP AWAY FROM THE DOOR. If we are doomed to hearing those useless and annoying announcements in a male voice, can we at least get the guy that does the subway stop announcements? His voice on subway is not so grating as the bus announcements. Of course, the audio system on the bus might be the reason.
Let me know when I should bring my brush.

Reply
AMH July 19, 2016 - 10:00 am

Agreed, the softer lighting in the older cars is so much more humane. The institutional glare of the stations and trains now is absolutely awful.

Reply
Russell July 18, 2016 - 4:20 pm

Aside from the reduced seating and non-staggered doors, this design is excellent.

Reply
Ed R. July 18, 2016 - 4:26 pm

It does seem like very little seating. And will those flip-downs last two days in actual use?

Also, it looks like there’s a real shortage of handholds for people standing who are less that 6 feet tall. I think you’re going to see big crowds around the grab poles in front of the doors and the seat-end grips next to the doors. That will not be great for traffic flow.

Are there systems using very similar car designs?

Looking again, the car seems impossibly wide. This is a rendering, not a photo, right? If so, it’s misleading, probably by intent.

Reply
Maxwell July 18, 2016 - 4:30 pm

Not impossibly wide I don’t think… the R32s are wider inside than a lot of newer models (or feel that way), which I always chalked up to a more efficient use of space… But I’m not positive.

Reply
Tower18 July 18, 2016 - 7:28 pm

And will those flip-downs last two days in actual use?

They’ll almost never be “up” but they should hold up just fine. The R142 series cars have been operating with flip up seats for 16 years.

Reply
Ed R. July 19, 2016 - 11:31 am

Wait, what? I don’t ride the IRT so much these days but I don’t think I’ve ever seen those cars with the seats flipped up. OK, great, they must work. Thanks.

Reply
Jeff July 19, 2016 - 12:16 pm

Looks like from the renderings that those flip-up seats are to accommodate wheel chairs, which is a feature that the R-142’s have.

Reply
AG July 19, 2016 - 6:30 pm

Yes – I have seen them on the 4 and the 5 for a few years now. They make a lot of noise when being flipped… Aside from that they seem to work just fine. Even Metro North has them (I think it’s the M8 cars) and they work fine there too.

Reply
webster July 18, 2016 - 4:28 pm

So…did Cuomo finally do something worthwhile. Can we admit that? Or do we have to hate this initiative, because of him?

I’ve already heard colleagues deride it as “Putting Lipstick on [crumbling infrastructure].”

Maybe, but it IS – partly – what residents have been asking for.

https://www.flickr.com/photos/mtaphotos/28110270670/in/album-72157670486462232/

Reply
webster July 18, 2016 - 4:34 pm

It all sounds good, as far as I can tell. Not to say nothing more needs to be done, obviously, but still…good.

https://www.governor.ny.gov/news/8th-proposal-governor-cuomo-s-2016-agenda-bring-mta-21st-century-dramatically-improve-travel

Reply
webster July 18, 2016 - 4:37 pm

There’s also this…

https://www.governor.ny.gov/sites/governor.ny.gov/files/thumbnails/image/MobileTicketing.jpg

Hopefully, it’s intended as being more of a placeholder until the actual fare media replacement is carried out…

Reply
Rich July 18, 2016 - 6:50 pm

Just because Cuomo is taking credit doesn’t mean any of this was his idea and/or decision.

Reply
Webster July 18, 2016 - 7:23 pm

Eh, that’s kind of beside the point: most of what he’s gotten behind hasn’t been his idea, but it’s still notable what’s he decides to endorse. These are needed efforts, even if it doesn’t begin to address all of the other technical challenges the agency faces.

Reply
Tower18 July 18, 2016 - 7:24 pm

Yeah, this is just another example of Cuomo treating the MTA as a state agency when there’s good news to announce, and then denying it’s a state agency when there’s bad news.

The R-211 cars have been under development since at least 2011, it’s not like his office just came up with this. And if you think the governor’s office personally had *ANY* significant role in this, you’re crazy.

Reply
mister July 18, 2016 - 8:40 pm

I have been a vocal critic of Cuomo, but I’m willing to acknowledge that he MAY have had an important role here. Cuomo announced that 750 of the cars are to be open gangways, an about face from MTA’s plan to only order one 10-car set with open gangways. If Cuomo was truly behind this, he would legitimately deserve kudos for this.

Reply
AG July 19, 2016 - 8:02 am

Agreed – if we complain we should also give credit when due.

Reply
JJJJ July 18, 2016 - 4:43 pm

The bastards finally did it. They finally adopted global best practices.

I can find very little wrong with these images. The only thing I could complain about would be the lack of plexiglass protection for the seats by the doors, rather than the metal tubes, to keep the rain out.

Like this:

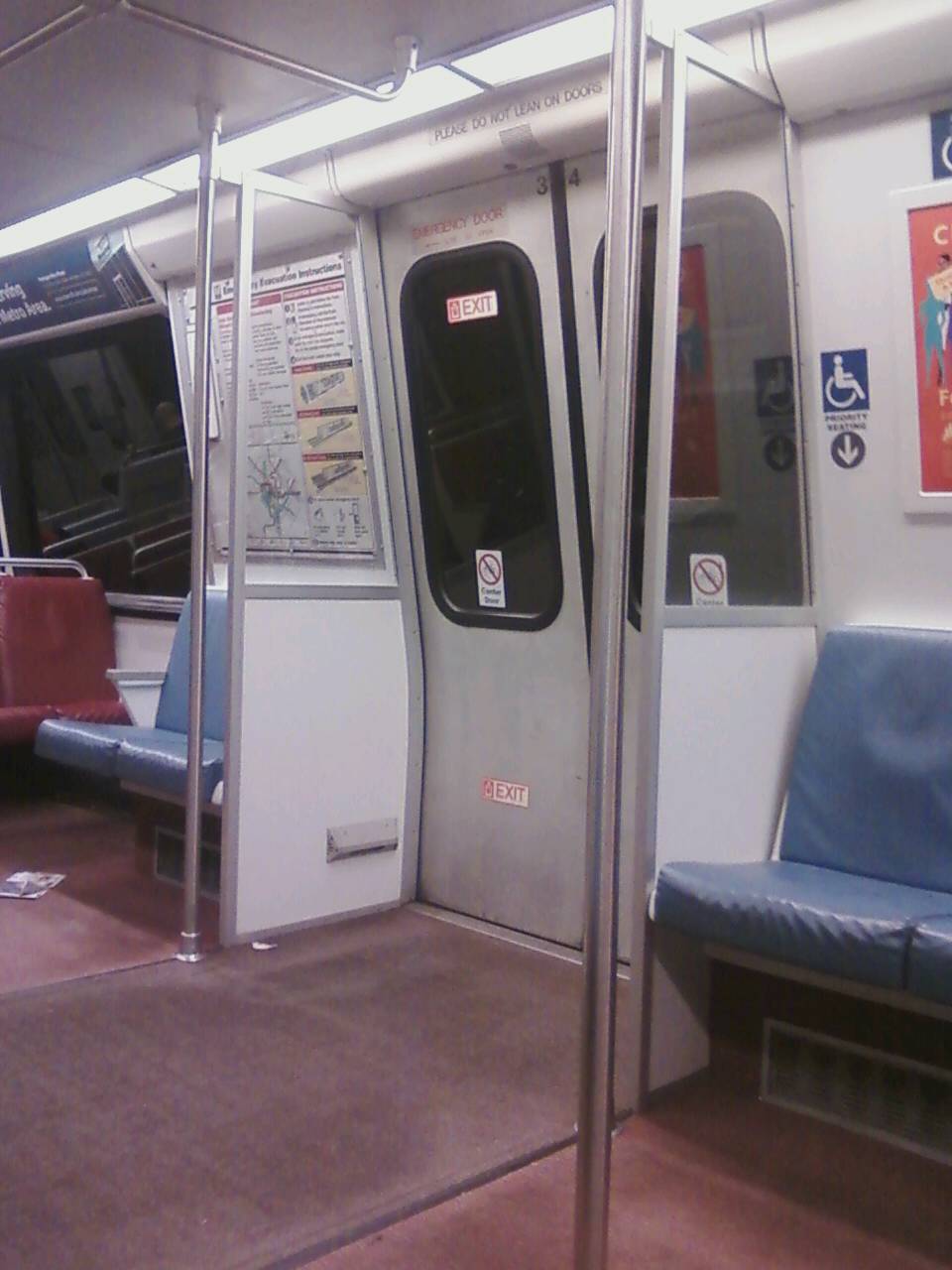

http://www.wirelessnotes.org/w.....000-04.jpg
