A glimpse at the $200M transit plans for One Vanderbilt

by Benjamin Kabak

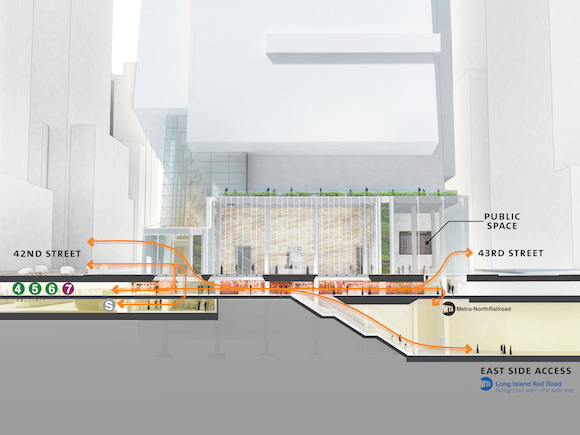

A diagram showing planned transit improvements for One Vanderbilt and Grand Central. (Photo via KPF)

A diagram showing planned transit improvements for One Vanderbilt and Grand Central. (Photo via KPF)

Toward the end of his third term, Mayor Michael Bloomberg unveiled an ambitious plan to rezone Midtown East for density. As part of the plans, the Mayor, consulting with the MTA, unveiled a few hundred million dollars worth of transit upgrades. These upgrades were Key in securing then-Manhattan Borough President Scott Stringer’s sign off and when the lame-duck mayor saw his rezoning dreams falter, I bemoaned the end of the transit upgrades.

Less than a year later, though, the rezoning plans are provisionally back on the table, albeit in a different form that doesn’t concern us. The transit upgrades too have survived the transition to Mayor Bill de Blasio’s administration, and yesterday, SL Green in conjunction with the MTA and Kohn Pedersen Fox unveiled their $200 million plan for transit access in and around Grand Central. Their goals — to be completed by 2020 — will streamline passenger flow and expand space in a constrained area, and, most importantly, the costs will be borne by the developers.

The project that developers and the MTA showed off yesterday is One Vanderbilt, a 65-story office building that will be open before East Side Access is scheduled to wrap. It will be directly to the west of Grand Central with multiple access points to the transit infrastructure below, and plans include closing Vanderbilt between 42nd and 43rd Sts. to vehicular traffic.

As far as transit improvements, the renderings are extensive and necessary. Plans include:

  • new ground-level entrances directly to the Shuttle platform along 42nd St.;
  • a below-grade corridor and escalators connecting directly into East Side Access;
  • a 4000-square-foot transit hall in One Vanderbilt;
  • a new entrance to the Lexington Ave. IRT from the Pershing Building;
  • narrower stairs and columns to provide more platform space and better pedestrian flow; and
  • the reopening of enclosed spaces to improve passenger flow on the IRT mezzanine.

All in all, the improvements are a significant part of the $400 million the MTA and City had said they needed to spend when the rezoning efforts were first announced in early 2013.

Although the MTA and SL Green recognize that community boards will still need to weigh in on this plan, transit advocacy groups and other interests are aligning in favor of the plan. “As a transit rider group, the Straphangers Campaign believes the proposed deal between SL Green, the City and the MTA holds much promise for improving the lives of millions of riders who use Grand Central Terminal. In October, the official land use process kicks in, with community boards, elected officials and the public getting a chance to have their say. We will be listening,” Gene Russianoff said.

Others echoed these sentiments. “The public access points, escalators, and waiting area will be a tremendous improvement for Grand Central and East Side Aces and this private investment will ensure the public reaps the full benefit of this world class transit hub,” Jennifer Hensley, Executive Director of the Association for a Better New York, said.

For now, we have promises and renderings. The streamlining of the columns alone are nearly worth the cost of the project, and the rest is just gravy. We’ll see when, if and how long this takes to come to fruition.

After the jump, a gallery of renderings of One Vanderbilt’s transit improvements, all via KPF.

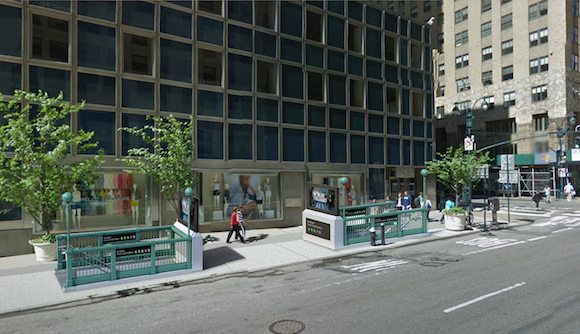

New entrances to the Shuttle platform along East 42nd St. (Via KPF)

New entrances to the Shuttle platform along East 42nd St. (Via KPF)

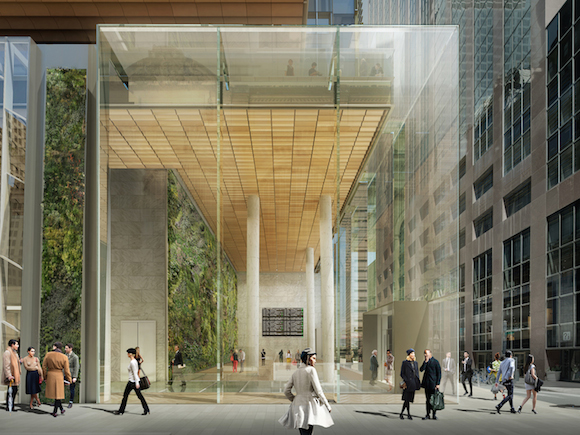

A glimpse into One Vanderbilt's Transit Hall. (Via KPF)

A glimpse into One Vanderbilt’s Transit Hall. (Via KPF)

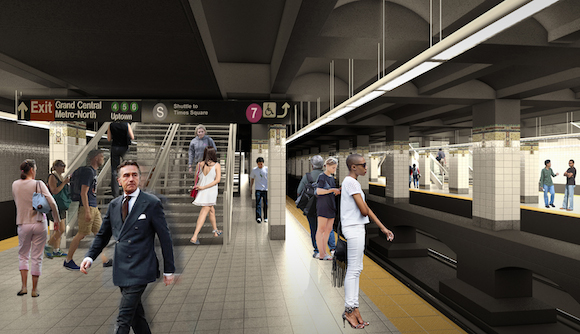

Smaller columns and narrower staircases will open up more platform space on the Lexington Ave. line. (Via KPF)

Smaller columns and narrower staircases will open up more platform space on the Lexington Ave. line. (Via KPF)

The Grand Central subway's mezzanine level will see more space as columns are narrowed. (Via KPF)

The Grand Central subway’s mezzanine level will see more space as columns are narrowed. (Via KPF)

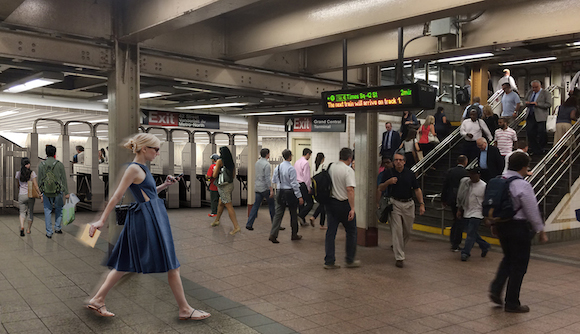

A new entrance will funnel riders from the Shuttle to One Vanderbilt. (Via KPF)

A new entrance will funnel riders from the Shuttle to One Vanderbilt. (Via KPF)

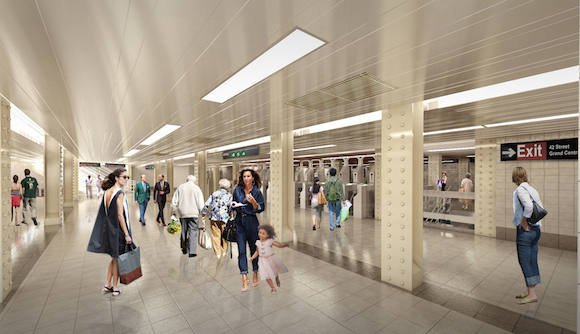

Expanded fare control area will be a part of the $200 million in transit upgrades. (Via KPF)

Expanded fare control area will be a part of the $200 million in transit upgrades. (Via KPF)
